- Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
- Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
- Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

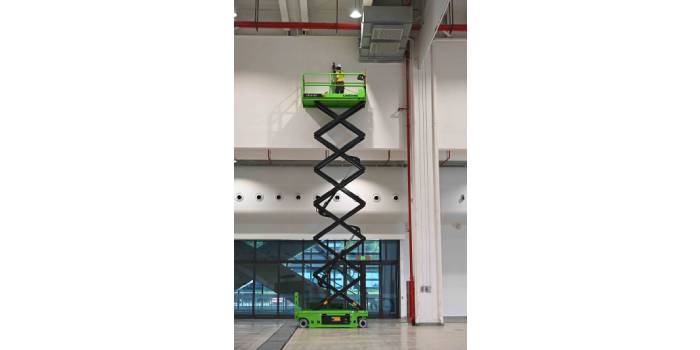

LS1414H
Max.Working Height:
16 m
Rated Load on Working Platform:
350 kg
Overall Length/Width:
3.1*1.38 m
LS1414H
Unit：
- Metric
- U.S
Product Features
LS1414H
Specifications
| Max.Work Height | 16/8 m |
| Max.Platform Height | 14/6 m |
| Min.Platform Height | 1.66 m |
| Platform Size（L×W） | 2.28*1.35 m |
| Overall Length | 3.1 m |
| Overall Width | 1.38 m |
| Overall Height (Rails Down) | 1.97 m |
| Max.Gradeability | 25 % |
| Rated Load on Working Platform | 350 kg |
| Battery | 24V / 270Ah |
| Charger | 24V / 30A |
| Total Weight | 3700 kg |
| Download Brochure 1 Download Brochure 2 |
※For reference only.
