- Safe And Reliability ：Double redundancy design of limit switch and long angle sensor,precise control of each working range;High precision working platform weighing sensor, continuous monitoring of platform load;Virtual wall protection can be confifigured to effectively protect the operator 's safety.
- High-Efficient And Comfortable：300kg unrestricted load and 454kg restricted area load in the whole working range;Closed hydraulic drive, variable main pump with electric proportional control, driving more stable;The design of automatic balance swing bridge is suitable for complex working conditions；；；；；；Fully hydraulic four-wheel drive system for faster response；；；；；；Multi-functional combined Hall full-scale effect joystick for more effificient operation.
- Compact Structure：The maximum working height is 30 m, the maximum working outreach is 22.9m, and the working range is wide；；；；；；The Jib can be rotated vertically at 135°, and the working range covers 60°downward to 75° upward;Four-bar linkage design, the structure is more compact.
- Maintenance Friendly：Real-time monitoring and transmission of vehicle information；；；；；；Historical fault record query;Maintenance tips;Working condition information record;Self-lubricating bearing;Screw-out engine tray.

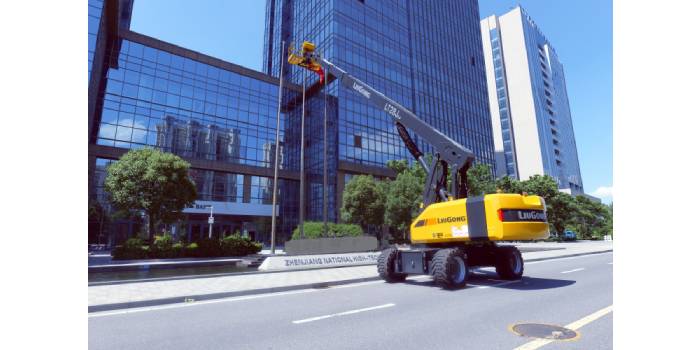

LT28JG4
Max.Working Height:
30 m
Max.Operating Range:
22.9 m
Platform Load:
300kg/454kg
LT28JG4
Unit：
- Metric
- U.S
Product Features
LT28JG4
LT28JG4
Specifications
| Max.Working Height | 30 m |
| Max.Platform Height | 28 m |
| Max.Operating Range | 22.9 m |
| Overall Length(Stowed) | 13.3 m |
| Overall Width(Stowed) | 2.49 m |
| Overall Height(Stowed) | 2.9 m |
| Overall Length(Transport) | 11.3 m |
| Overall Width(Transport) | 2.25 m |
| Overall Height(Transport) | 2.6 m |
| Turntable Tailswing(Stowed) | 1.49 m |
| Platform Size(L×W×H) | 2.4×0.91×1.1 m |
| Tyres | 18-625 |
| Platform Load(Unrestricted/Restricted) | 300 kg /454 kg |
| Gradeability | 45 % |
| Max.Working Slope | X-5°/Y-5° |
| Turret Rotation | 360°(Continuous) |
| Drive Steering Type | 4WD×2WS |
| Diesel Engine | YCF3075-T480/55.8kW |
| Diesel Tank | 150 L |
| Hydraulic Oil Tank | 170 L |
| Download Brochure |
※For reference only.
